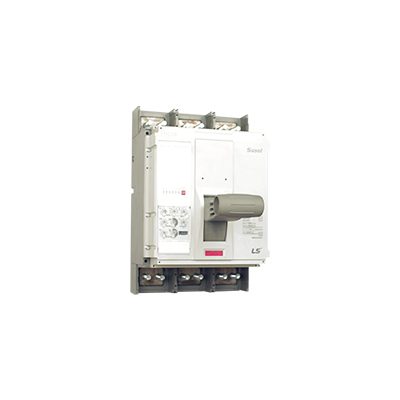

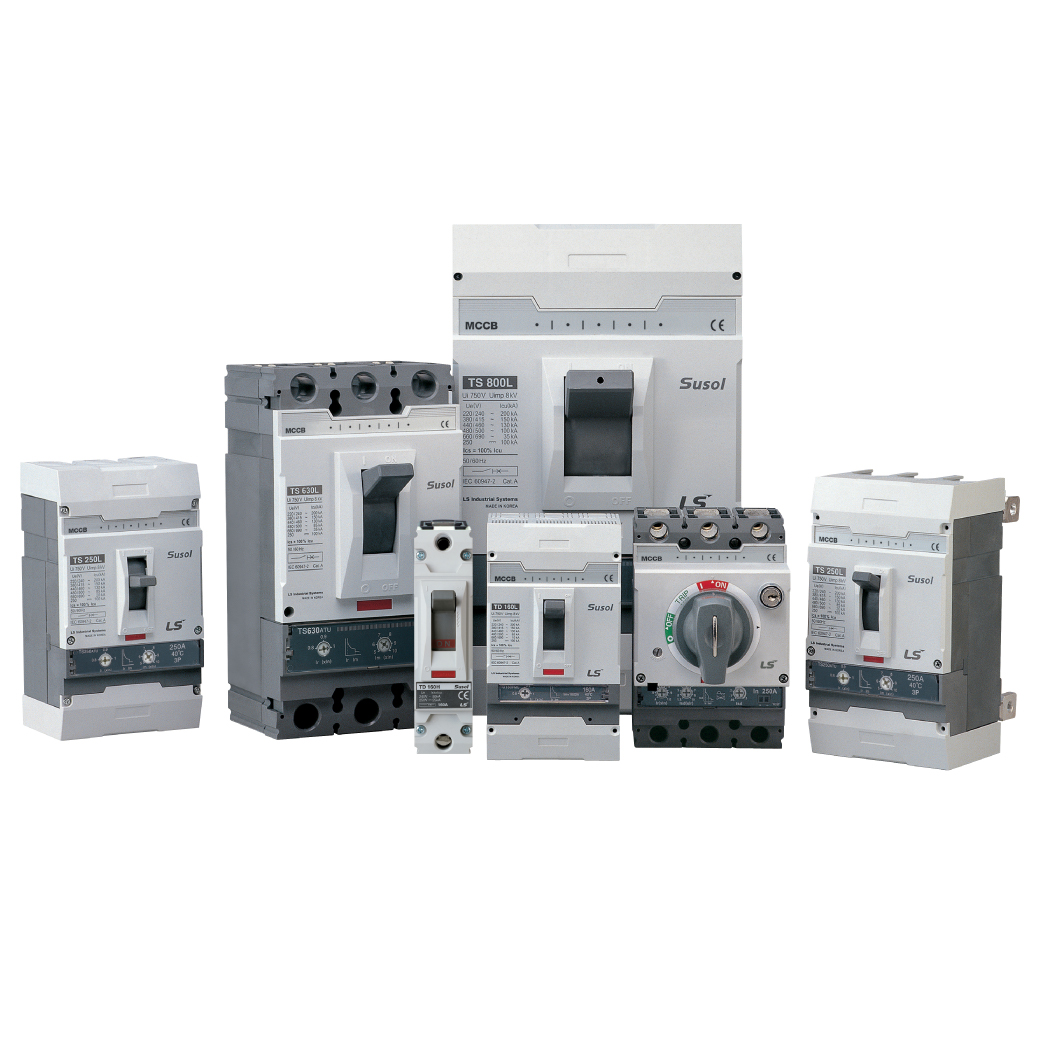

LS MCCB SUSOL

Categories: ,

High Performance MCCB

Service Breaking Capacity: ICS = 100% of ICU

Rated Current, (A) : 16, 20, …………… 800A
Type of Trip Unit : Adjustable Thermal, Fixed Magnetic (FMU) Fixed Thermal, Fixed Magnetic (FTU)
No. of Poles : 3 Pole, 4 Pole
Category of Use : Type A according to IEC 947-2

* JKR – JKR Approved (82)dlm.JKRL(PM) 5/1/4 2Jld-7

Download Catalogue
Catalogue 1
Description
415V		 MCCB Rotary Handle Extended Handle Motorised
Code Code Code Code
3 Pole 50KA 3P
16~20A, 20~25A, 32~40A, 50~63A, 80~100A
125A ~ 160A
200A
250A		 TD100N FMU (Adjustable)

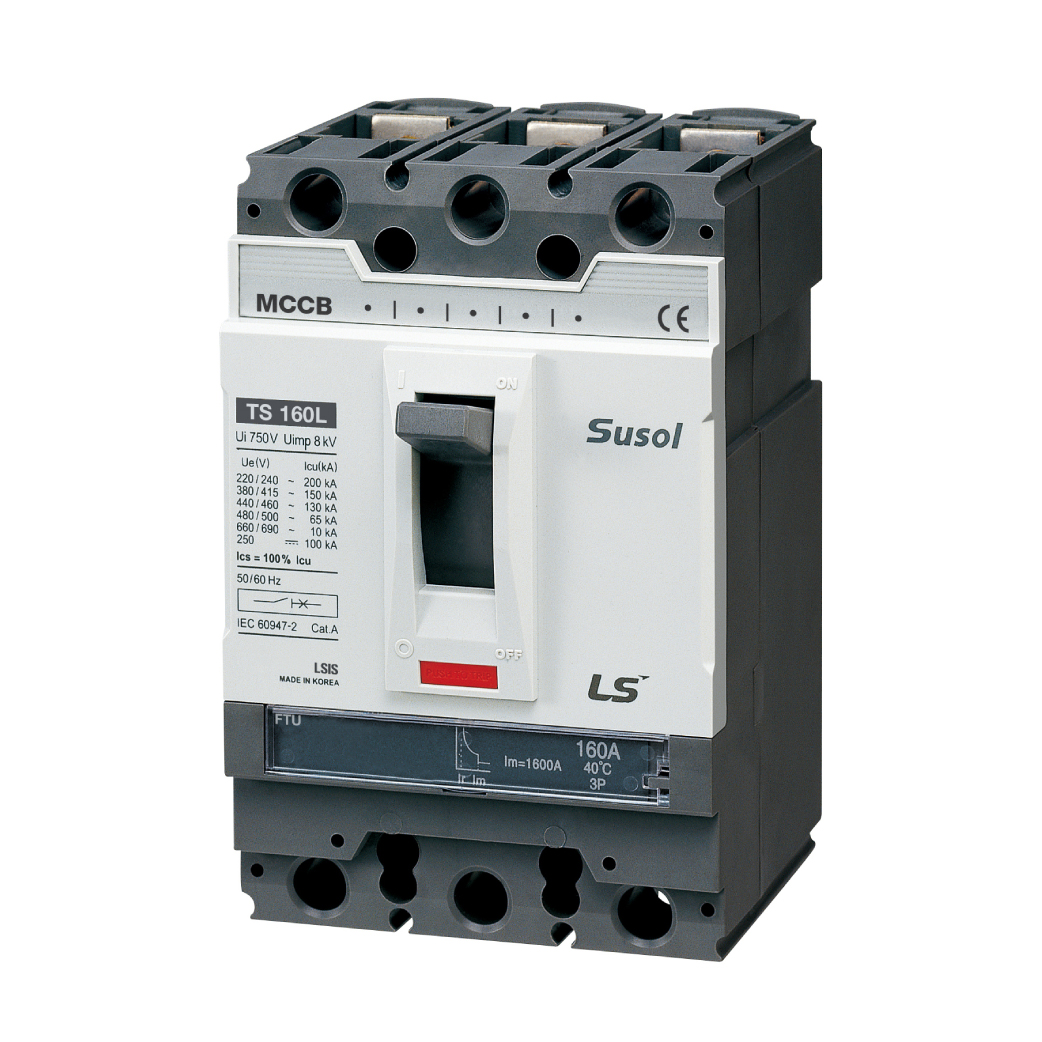

TD160N FTU

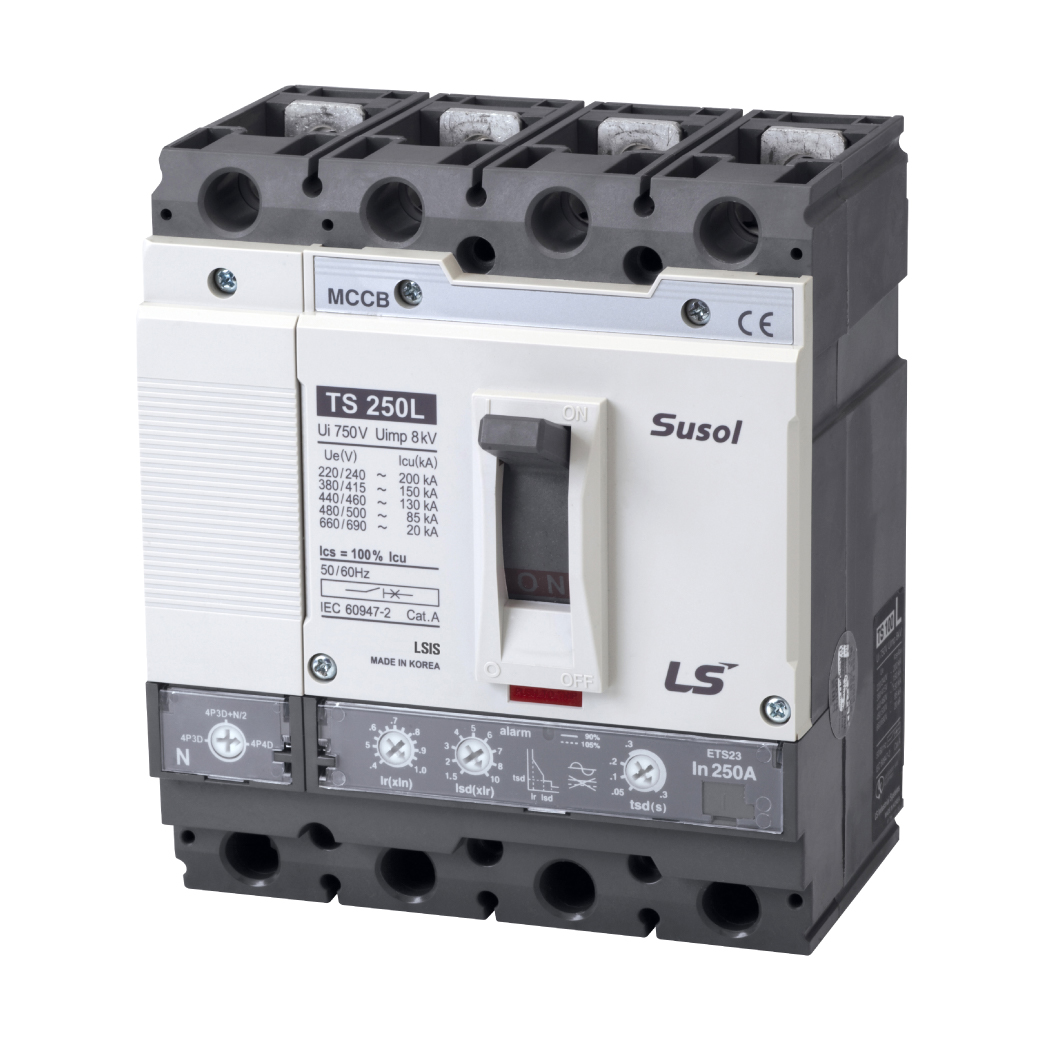

TS250N FTU		 DH1 EH1 MOP1
DH2 EH2 MOP2
65KA 3P
300A & 400A
500A & 630A
700A & 800A		 TS400N FTU
TS630N FTU
TS800N FTU		 DH3 EH3 MOP3
DH4 EH4 MOP4
4 Pole 50KA 4P
16~20A, 20~25A, 32~40A, 50~63A, 80~100A
125A ~ 160A
200A
250A		 TD100N FMU (Adjustable)
TD160N FTU
TS250N FTU

 DH1 EH1 MOP1
DH2 EH2 MOP2
65KA 4P
300A & 400A
500A & 630A
700A & 800A		 TS400N FTU
TS630N FTU
TS800N FTU		 DH3 EH3 MOP3
DH4 EH4 MOP4
Please specify mccb model upon ordering of accessories.
