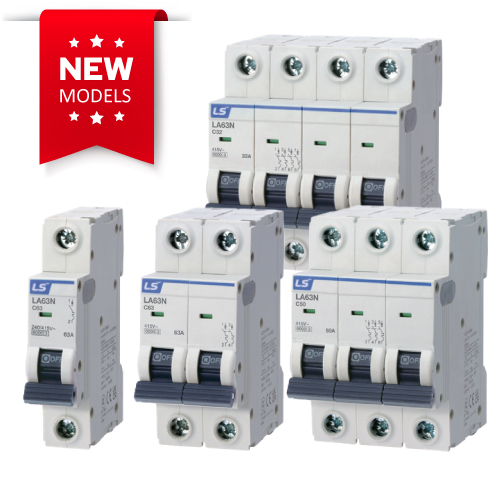

LS MCB ( L-Series )

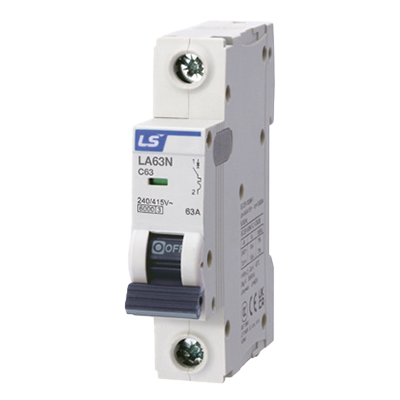

LS MCB ( L-Series ) - Image 2

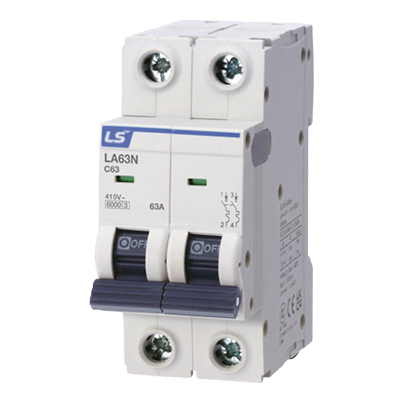

LS MCB ( L-Series ) - Image 3

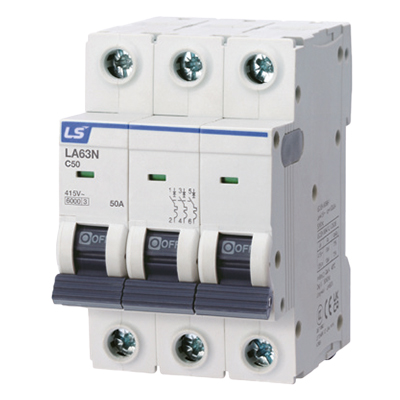

LS MCB ( L-Series ) - Image 4

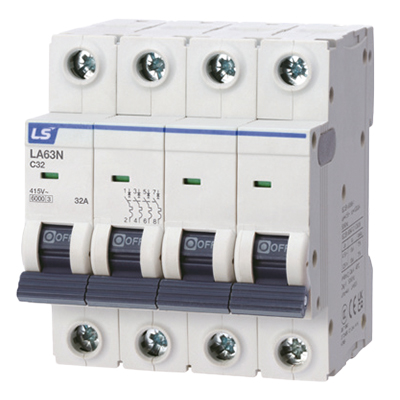

LS MCB ( L-Series ) - Image 5

LS MCB ( L-Series )

Categories: , ,

Rated Current, (A) : 6, 10, …….. 63
Type : C
No. of Poles : 1, 2, 3, 4

* SIRIM – IEC 60898-1

Download Catalogue
Catalogue 1

BREAKING CAPACITY : 6KA

Model
Type-C		 Current Rating (Ampere) No.of Pole Quantity Per BOX
LA63N 6, 10, 16, 20, 25, 32 1 12
40, 50, 63
6, 10, 16, 20, 25, 32 2 6
40, 50, 63
6, 10, 16, 20, 25, 32 3 4
40, 50, 63
6, 10, 16, 20, 25, 32 4 3
40, 50, 63
Accessories Auxiliary Switch ( LA-AX )
Alarm Switch ( LA-AL )
Shunt Trip 110-415VAC ( LA-SHT )
