LS MCCB ( Metasol )

Categories: Low Voltage, LS Circuit Breakers

Metasol series Moulded Case Circuit Breaker

Service Breaking Capacity : ICS = 100% of ICU

Rated Current, (A) : 15A, …………… 1600A
Type of Trip Unit : Thermal-magnetic
No. of Poles : 2, 3 & 4-Pole
Category of Use : Type A according to IEC 60947-2

* JKR EMAL listed.

Download Catalogue

Technical Specification

Descriptions	MCCB	Shunt Trip (AC. 240V)	AUX. + Alarm SW	U.V.T (AC.415V)	Rotary Handle	Extended Handle
Descriptions	Code	Code	Code	Code	Code	Code
*30kA 2P at 240V* 15A to 50A 60A	ABN52c ABN62c	SHT-C	XL-2	UVT-C	DH-100	EH-100

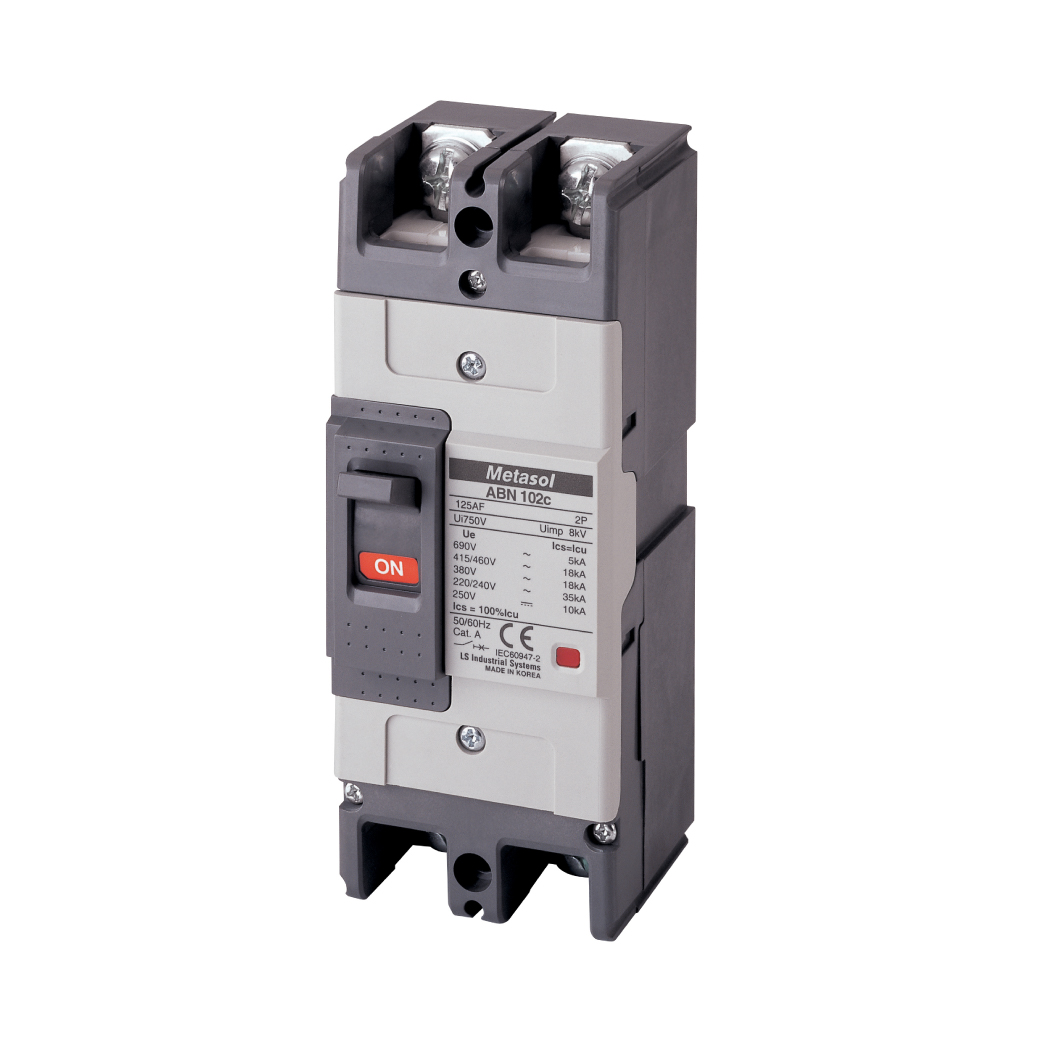

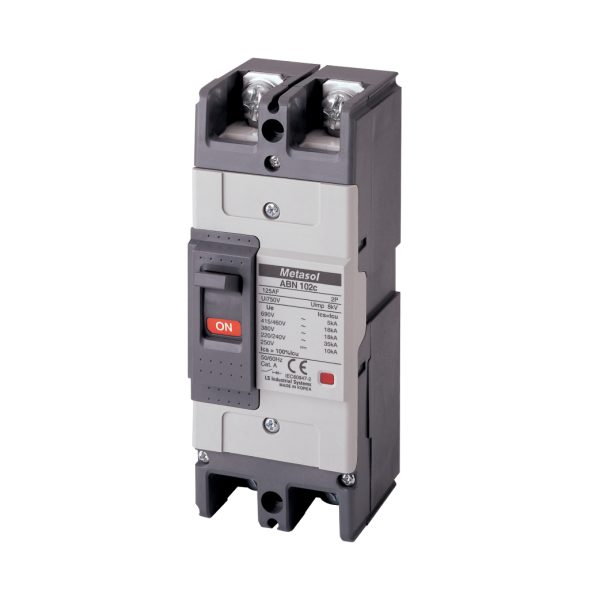

*35kA 2P at 240V* 75A to 100A	ABN102c				DH-100	EH-100
*85kA 2P at 240V* #15A to 100A	ABS102c				DH-125	EH-125
*14kA 3P at 415V* 15A to 50A 60A	ABN 53c ABN 63c	SHT-C	XL-C	UVT-C	DH-100	EH-100
*18kA 3P at 415V* 75A to 100A	ABN 103c				DH-100	EH-100

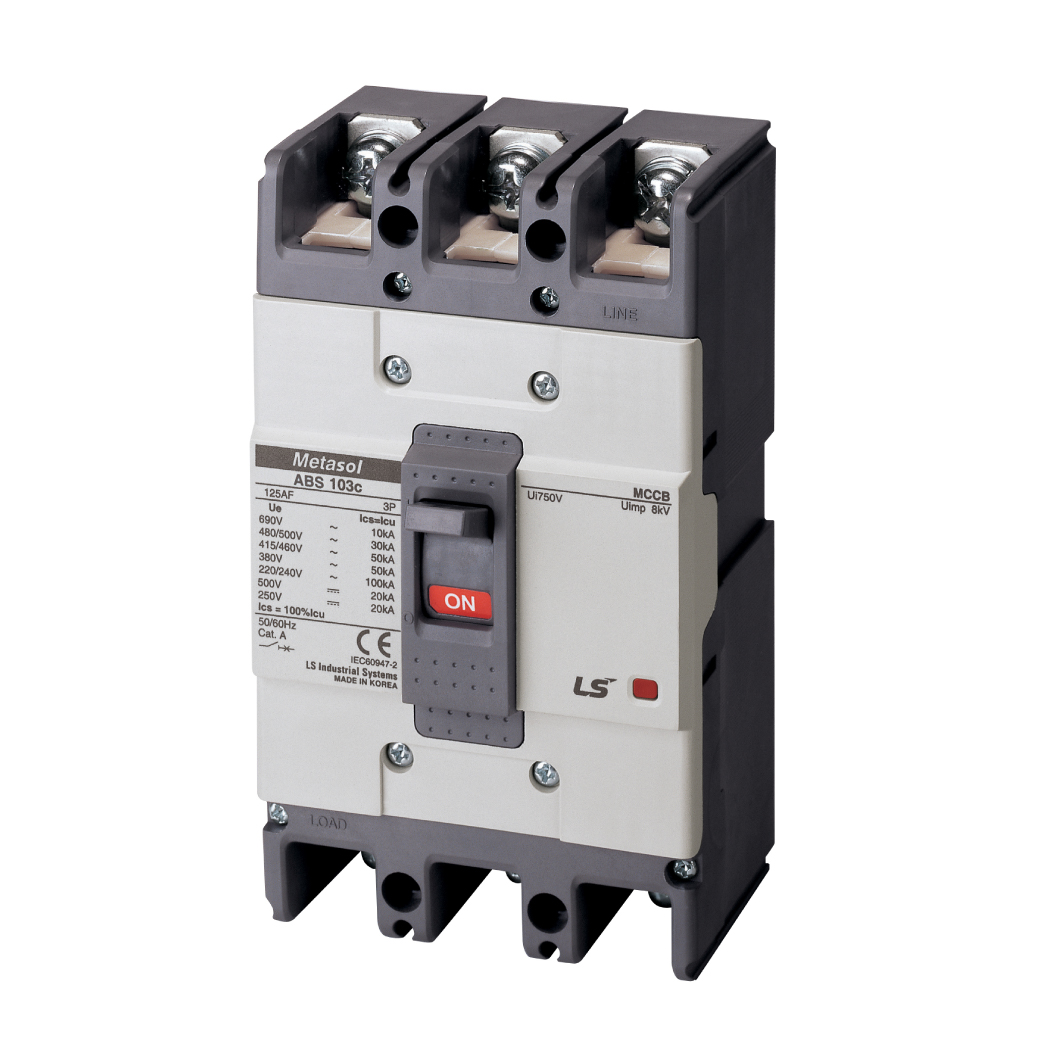

*37kA 3P at 415V* 15A to 125A	ABS103c				DH-125	EH-125
150A 175A , 200A, 225A 250A	ABS203c				DH-250	EH-250
300A, 350A, 400A	ABN403c	ST-3	AX3b AL3b	UVT3	N70S	E-70U

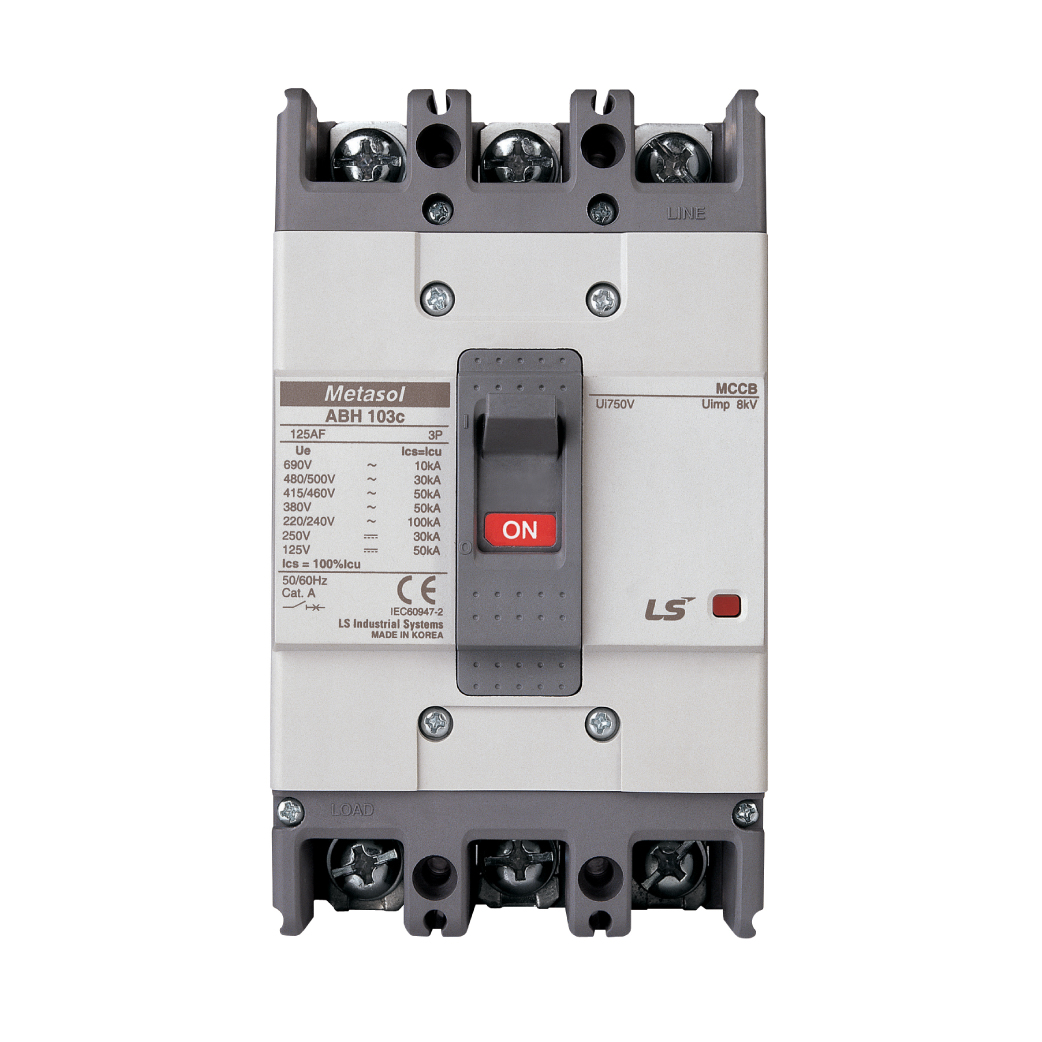

*50kA 3P at 415V* 15A to 50A 60A to 125A	ABH53c ABH103c	SHT-C	XL-C	UVT-C	DH-125	EH-125
150A, 175A 200A, 225A 250A	ABH203c	SHT-C	XL-C	UVT-C	DH-250	EH-250
*65kA 3P at 415V* 300A, 350A, 400A	ABH403c	ST-3	AX3b AL3b	UVT3	N70S	E-70U

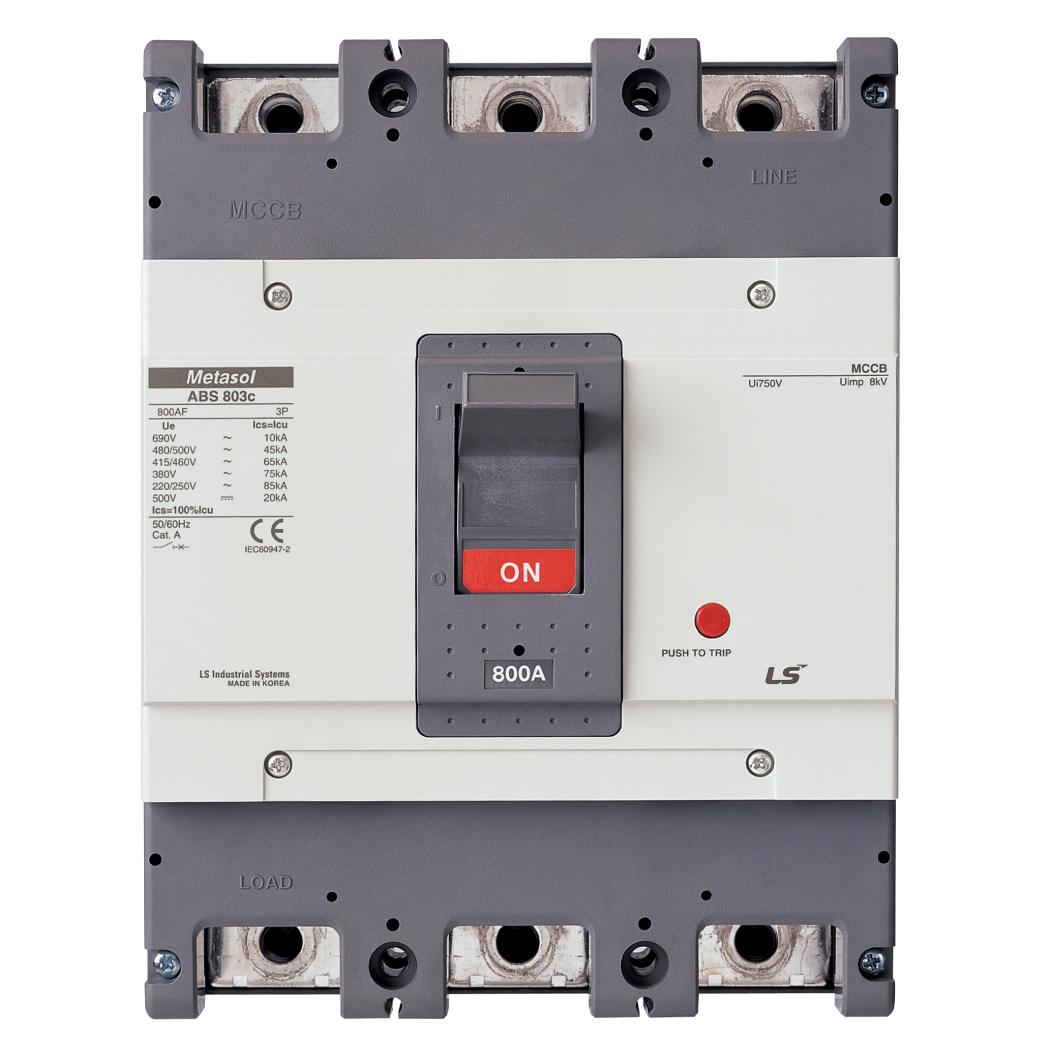

500A to 630A 700A to 800A	ABS803c	ST-3	AX3b AL3b	UVT3	N80S	E-80U
*65kA 3P at 415V* #1000A #1200A	*ICS = 50% of ICU*
*65kA 3P at 415V* #1000A #1200A	ABS1003 ABS1203	ST-4	AX4 AL4	UVT4	TBA	TBA
*50kA 3P at 415V* #800 to 1600A (Adjustable)	*SUSOL – SERIES (With Normal Type OCR-NG5)*
*50kA 3P at 415V* #800 to 1600A (Adjustable)	TS 1600N	SHT-5	AX5 AL5	UVT5	DH5-S	EH5-S

Non-Adjustable / Adjustable Breakers
Service Breaking Capacity : ICS = 100% of ICU

Descriptions	MCCB	Shunt Trip (AC. 240V)	AUX. + Alarm SW	U.V.T (AC.415V)	Rotary Handle	Extended Handle
Descriptions	Code	Code	Code	Code	Code	Code

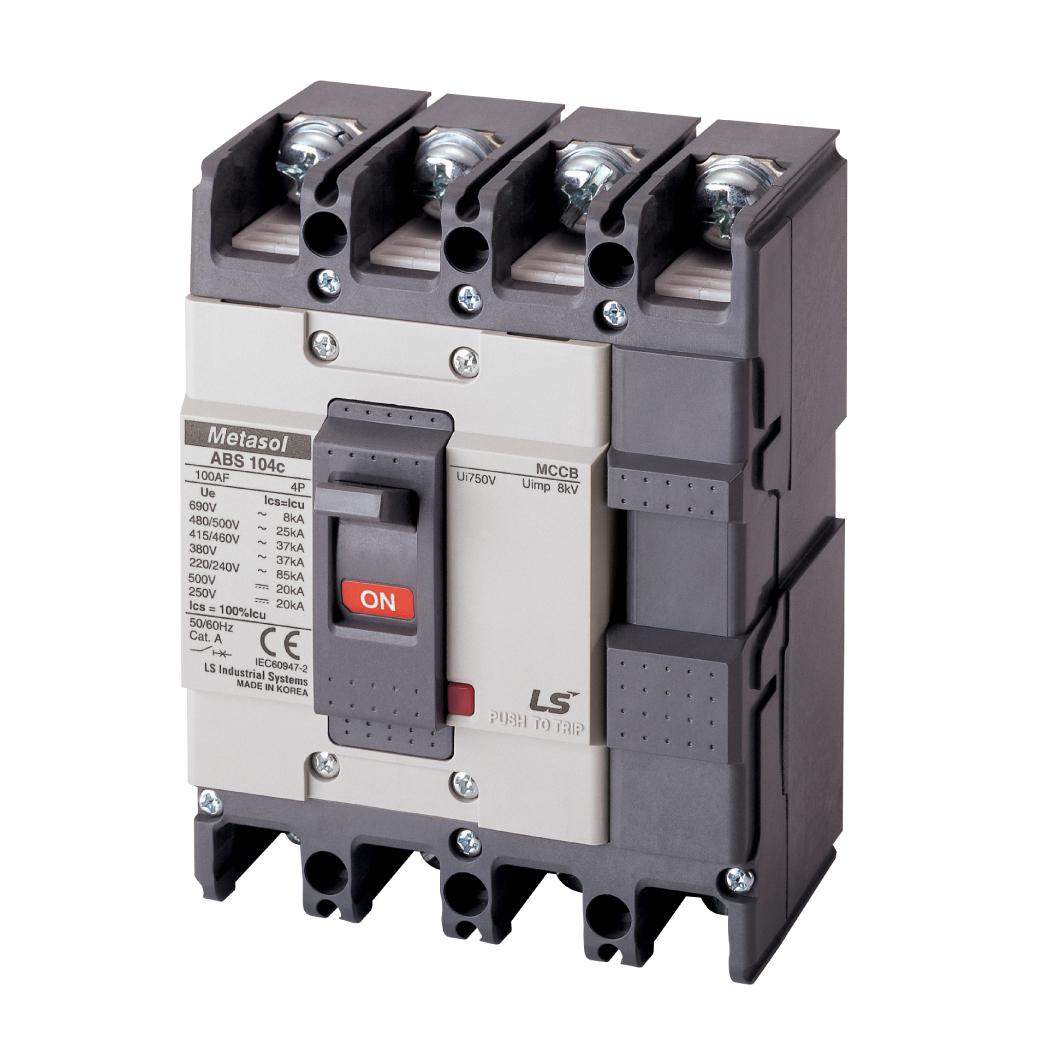

*37kA 4P at 415V* #15A to 125A	ABS104c	SHT-C	XL-C	UVT-C	DH-125	EH-125
#150A #175A , 200A, 225A #250A #300A, 350A, 400A	ABS204c	SHT-C	XL-C	UVT-C	DH-250	EH-250
#150A #175A , 200A, 225A #250A #300A, 350A, 400A	ABN404c	ST-3	AX3b AL3b	UVT-3	N70S	E-70U
*50kA 4P at 415V* #15A to 50A	ABH54c	SHT-C	XL-C	UVT-C	DH-125	EH-125
#60A to 125A	ABH104c				DH-125	EH-125
#150A, 175A #200A, 225A #250A	ABH204c				DH-250	EH-250
*65KA 4P at 415V* #300A, 350A, 400A	ABH404c	ST-3	AX3b AL3b	UVT-3	N70-S	E-70U
#500A to 630A #700A to 800A	ABS804c	ST-3	AX3b AL3b	UVT-3	N80-S	E-80U
*65kA 4P at 415V* #1000A #1200A	*ICS = 50% of ICU*
*65kA 4P at 415V* #1000A #1200A	ABS1004 ABS1204	ST-4	AX4 AL4	UVT4	TBA	TBA
*50kA 4P at 415V* #800 to 1600A (Adjustable)	*SUSOL – SERIES (With Normal Type OCR-NG5)*
*50kA 4P at 415V* #800 to 1600A (Adjustable)	TS 1600N	SHT-5	AX5 AL5	UVT5	DH5-S	EH5-S

Remark:
# Those model “do not have” JKR approval
Note: Other ranges will be quoted upon request. Please specify MCCB model upon ordering of accessories.
