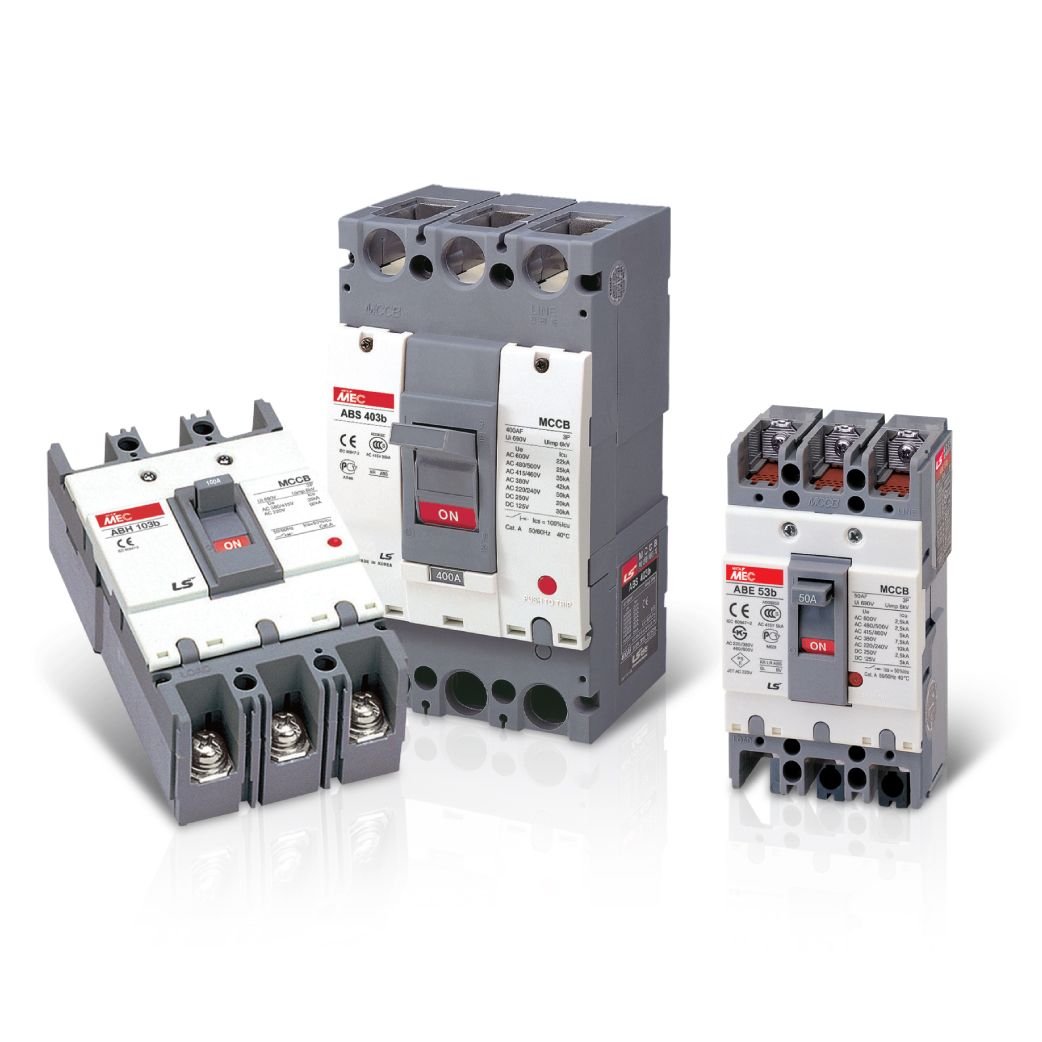

LS MCCB ( Meta-MEC )
LS MCCB ( Meta-MEC ) - Image 2
LS MCCB ( Meta-MEC ) - Image 3
LS MCCB ( Meta-MEC ) - Image 4

LS MCCB ( Meta-MEC )

Categories: ,

Meta-MEC series Moulded Case Circuit Breaker

Service Breaking Capacity: ICS = 50% of ICU

Rated Current, (A) : 15A, …………… 250A
Type of Trip Unit : Fixed Thermal Magnetic
No. of Poles : 2 Pole, 3 Pole
Category of Use : Type A
Type of Approval : CE, KEMA

Download Catalogue
Catalogue 1
AMPERE MODEL ACCESSORIES (MODEL)
SHUNT TRIP AUX+ALARM
SWITCH		 U.V.T ROTARY
HANDLE		 EXTENDED
HANDLE
2 Pole 25kA at 220Vac

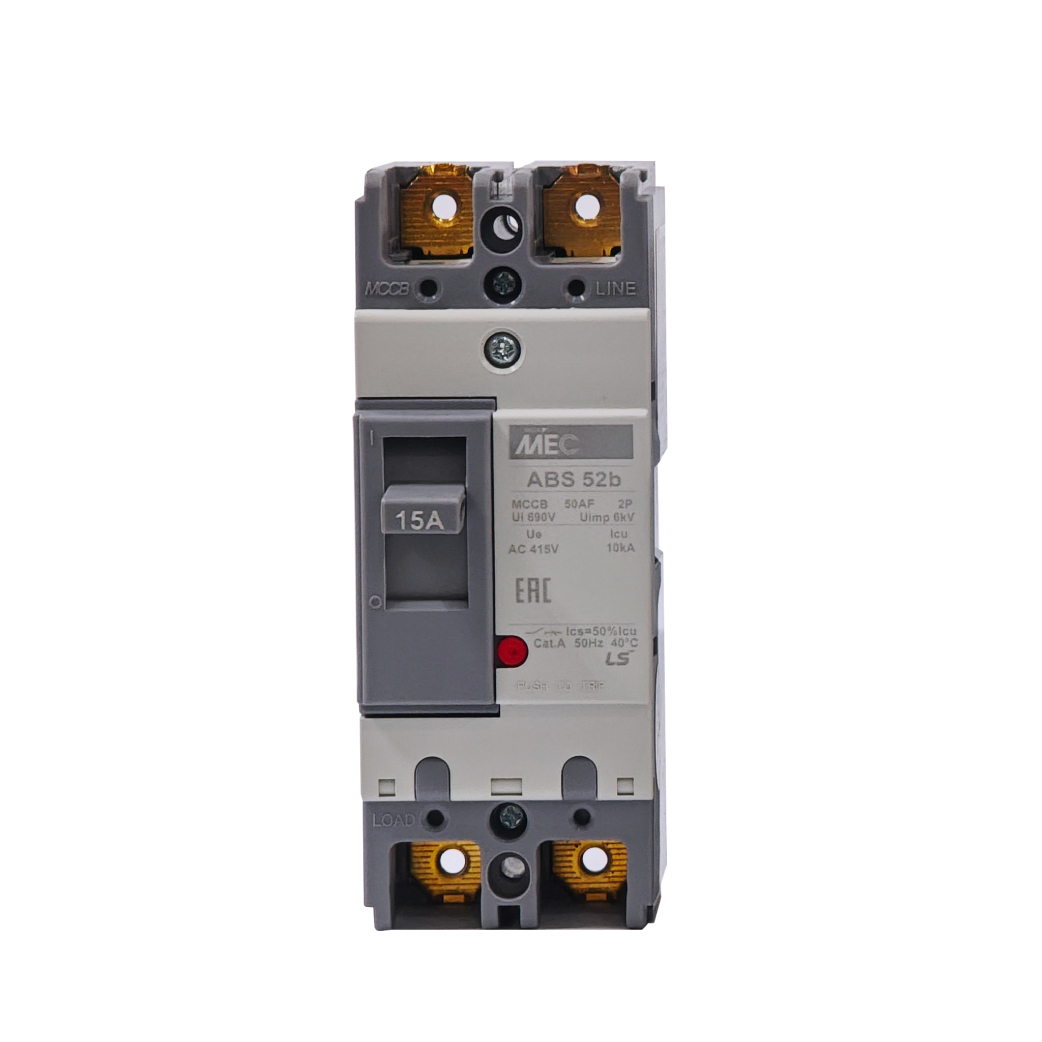

15A,20A,30A,40A,50A ABS52b ST-CE100 XL1E100T UVT-AE100 D-35S E-35S
60A ABS62b
75A, 100A ABE102b
3 Pole 10kA at 415Vac
15A,20A,30A,40A,50A ABS53b ST-CE100 XL1E100R UVT-AE100 D-35S E-35S

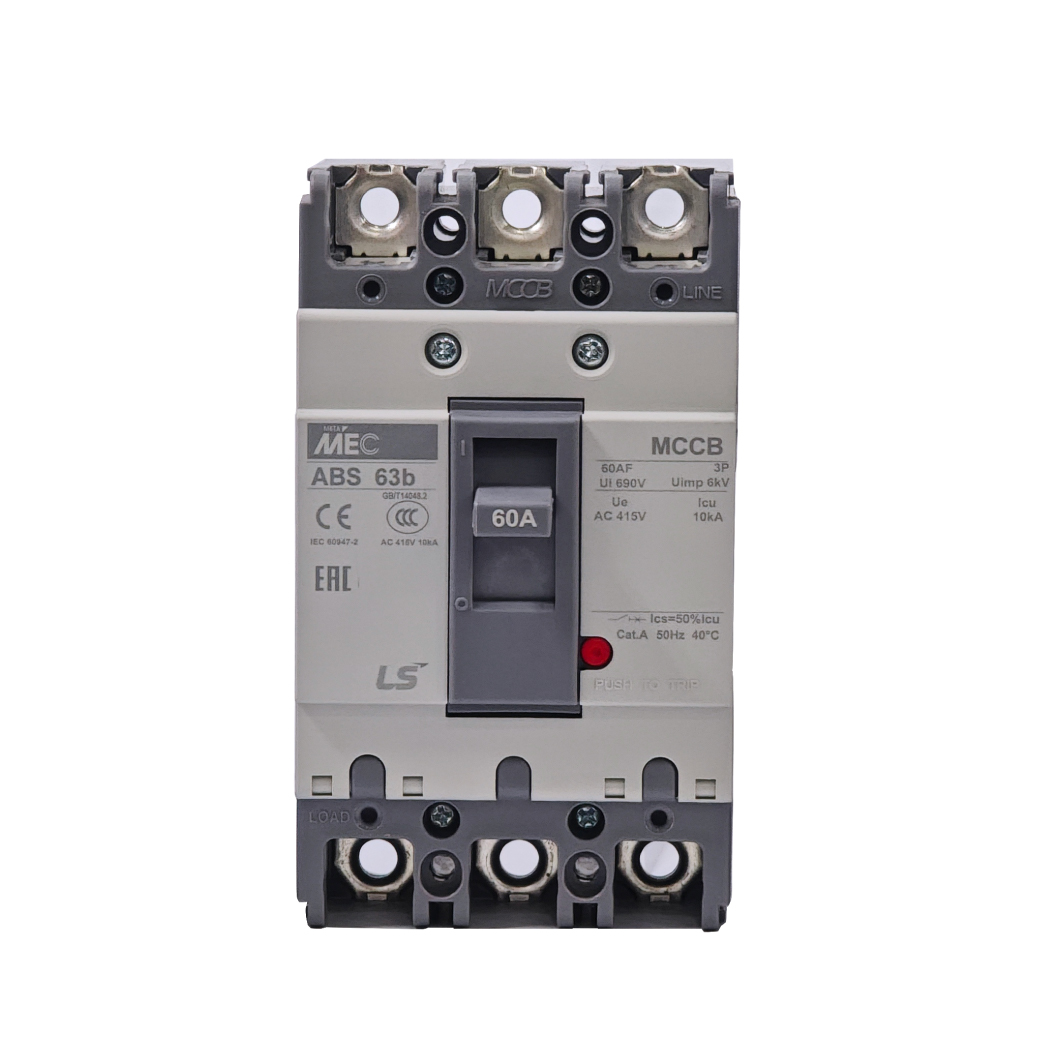

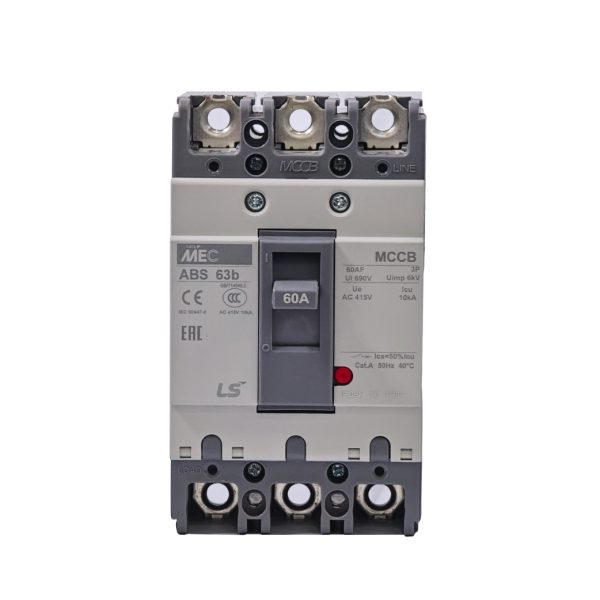

60A ABS63b
75A, 100A ABE103b
3 Pole 35kA at 415Vac
15A,20A,30A,40A,50A,60A,

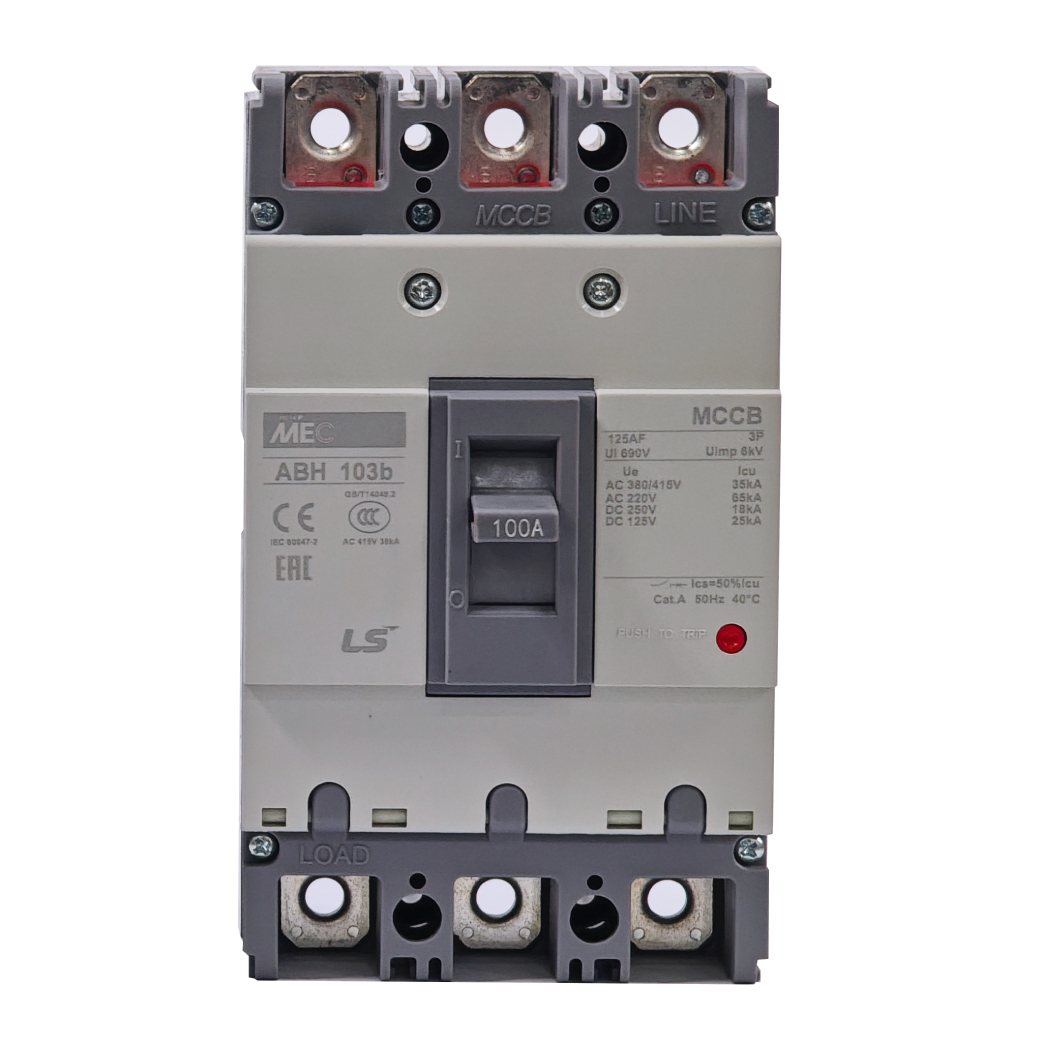

75A, 100A		 ABH103b ST-CH100 XL1H100R UVT-AH100 D-45S E-45S
125A ABH103b
150A ABH203b ST-CH200 XL1H200R UVT-AH200 D-55S E-55S
175A,200A,225A ABH203b
250A ABH203b
Please specify MCCB model upon ordering of accessories.
